COACH SCREW MAKING PLANT  (Automatic) (High Speed)





(a) Automatic High Speed  Double Stroke Cold Heading Machines
(b) Automatic Bolt Head Trimming and Shank Reducing Machines
(c) Automatic Thread Cutting Machines





DOUBLE  STROKE  COLD  HEADING  MACHINE  (Automatic,  High Speed)

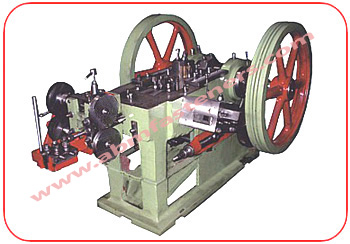

Automatic double stroke cold heading machines High Speed



FEATURES

  • These cold heading machines are fully automatic and easy to operate with little training, fitted with Solid Die to produce blank for Bolts, Screws, Rivets and other similar components. Cut off and knock out mechanism have safely devices that will stop any major accident if any abnormal function occurs in machines.

  • A positive knock out provision had been made on the 1st and 2nd punches to eliminate the possibility of parts sticking to these punches during the operations. The maximum parts of the machines are ground and all the Cames and Rollers  from H.C.H.C. ( Hardened & Ground ).

  • On  some  extra  charges machines will be equipped with Pneumatic Clutch & Automatic Centralized Lubrications systems which provides sufficient quantity lubricating to all bearing surface.

SPECIFICATION



Item Code No. Length of Screw Dia. of Screw Production
Per Minute
Motor H.P.
ABM-FM-6530 1" to 4" 1/4" to 3/8" 60  Pcs. 7.5

















BOLT  HEAD  TRIMMING  AND  SHANK  REDUCING  MACHINES
(Automatic,  High Speed)

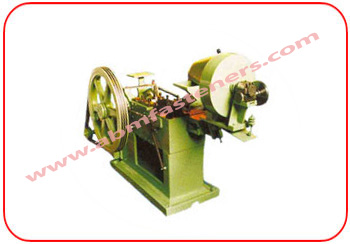

Automatic bolt head trimming and shank reducing machine high speed



FEATURES



ABM  Tools  Automatic  Bolt  head  Trimmers  are  extra  exclusive  in  their  transport  systemOne  of  the  Special  features  is  that  bolts  with  extreme  short  shank  length  can  be  transported  without  any  difficultyIt  makes  ABM  TOOLS  Trimmer  the  fastest  in  the  market.



The  simplicity  of  the  tooling  increases  the  efficiency  considerably  and  cuts  down  on  set  up  time.



The  machine  is  well  known  ABM  TOOLS  quality  which  stands  for  excellent  workmanship  and  superior  design.





ESSENTIAL  FEATURES

Machine  design  is  very  simpleAll  working  parts  &  gears  are  enclosed  as  possibleSpeed  can  be  changed  by  motor  pulley.  Automatic  feed  with  efficient  drum  type  hopper  of  high  capacity.



Bolts  are  transferred  by  finger  from  feed  rails  to  trimming  dieAll  adjustments  are  easy  operated  and  simpleVibrator  Hopper  for  odd  components  (optional)



  • Fastest  machine  on  the  Market

  • Sophisticated  Transport  System

  • Rugged  design

  • One  operator  for  upto  4  machines

  • Fine  Stroke  adjustment



SPECIFICATION



Item Code No. Length of Screw Dia. of Screw Production
Per Minute
Motor H.P. &
R.P.M.
ABM-FM-6423 4"  (25 mm - 100 mm) 1/2" (8 mm - 12 mm) 60 - 65  Pcs. 10 x 1400

















THREAD  CUTTING  MACHINES  (Automatic)

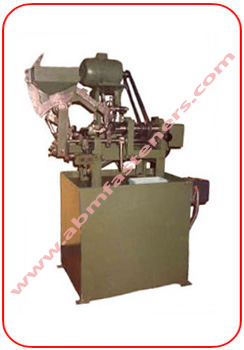

woodscrew making machine, thread cutting machine automatic



FEATURES



A Thread Cutting Machine job is to cut thread on blank of screws. The slotted blanks are placed in a hopper at top from which automatic slide down with the aid of feeder. A picker hold each blank one by one and feed into a chuck and tool cut thread on the blank and threaded screws talls down in a receptable.



SPECIFICATION



Item Code No. Length of Screw Wire Size S.W.G. Production
Per Minute
Motor H.P. &
R.P.M.
ABM-FM-6513 1/2" - 4" 8 - 0  S.W.G 4 - 6  Pcs. 1.5 x 1440









Wood Screw Making Plant      Solid Rivet Making Machines







All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
