FRICTION  SCREW  PRESSES  AND  FORGING  PRESSES



Download Catalogue (PDF)

(a) Friction Screw Presses (Down Stroke)
(b) Forging Presses (Up Stroke)
FRICTION  SCREW  PRESSES  (Down  Stroke)

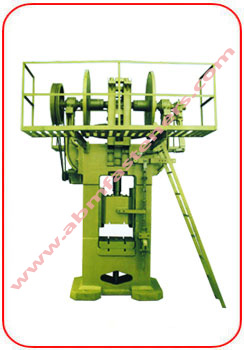

Friction Screw Press, Down Stroke Press



FEATURES



  • Hot  Forgings.

  • Investment costs low & Cost for foundations are minimal.

  • The forging Dies have a long life.

  • Costs of development, manufacturer & replacement of the dies are low.

  • Great forging accuracy is achieved because of the free stroke.

  • Additional energy can be applied to the same die impression by making several blows.

  • The heat contact time considerably less than it with crank type forging presses & knuckle joint presses.

  • Cost of repairs after years of hard usage is low. Only skilled labor should be employed for its usage.

  • Our Friction Screw Presses are heavy duty fabricated construction and are suitable for endless variety of   Non-Ferrous Stamping, Forgings and Piercing operations depending on the tooling employed on it. Even these are utilized for planership and finishing of articles which has been produced on Power Presses or by castings. These presses are being manufactured from 30 to 500 Tonnes Capacity. Their design beauty is that they can give 1/2" stroke with full press force. Moreover any type of ejection arrangement can be supplied along with the press against specific requirement.



SPECIFICATION

Item Code No.

ABM-FM-7010 ABM-FM-7011 ABM-FM-7012 ABM-FM-7013
Capacity 30 Tons 50 Tons 100 Tons 200 Tons
Dia  of  Screw 3-1/4" 4" 5" 6-1/2"
Stroke of Press 7" 8" 11" 14"
Table of Slide (Max.) 13" 14" 18" 22"
Table of Slide (Min.) 6" 6" 7" 8"
Size of Table (Front) 12" 15" 19" 22"
Size of Table (Side) 11" 14" 18" 21"
Distance Tables to Guides 6" 6" 8" 10"
Distance Between Guides 13" 16" 20" 23"
Distance Between Column 9" 12" 14" 17"
Bore in Table 3" 3" 4" 5"
Bore in RAM (Shank Dia.) 1-1/2" 1-1/2" 2" 2-1/2"
Dimensions of RAM 9" x 9" 12" x 12" 14" x 14" 17" x 17"
T Slots in Table 5/8" 5/8" 5/8" 3/4"
T Slots in RAM 5/8" 5/8" 5/8" 5/8"
H.P. Required 5 H.P. 7.5 H.P. 10 H.P. 20 H.P.
R.P.M. 1440 960 960 960
Net Approx. Weight in Kgs. 2000 Kg. 3000 Kg. 5000 Kg. 9000 Kg.
Height 8' - 4" 9' - 4" 10' - 4" 12' - 4"

Item Code No.

ABM-FM-7014 ABM-FM-7015 ABM-FM-7016
Capacity 300 Tons 400 Tons 500 Tons
Dia  of  Screw 8" 9-1/2" 11"
Stroke of Press 16" 18" 20"
Table of Slide (Max.) 25" 28" 32"
Table of Slide (Min.) 9" 10" 12"
Size of Table (Front) 25" 28" 30"
Size of Table (Side) 24" 28" 30"
Distance Tables to Guides 12" 14" 16"
Distance Between Guides 26" 30" 32"
Distance Between Column 19" 22" 24"
Bore in Table 6" 6" 6"
Bore in RAM (Shank Dia.) 3" 3" 4"
Dimensions of RAM 19" x 19" 21" x 22" 24" x 24"
T Slots in Table 1" 1" 1-1/4"
T Slots in RAM 3/4" 1" 1"
H.P. Required 30 H.P. 40 H.P. 50 H.P.
R.P.M. 960 960 960
Net Approx. Weight in Kgs. 13000 Kg. 17000 Kg. 23000 Kg.
Height 14' - 6" 15' - 6" 17'









FORGING  PRESSES  (Up Stroke)

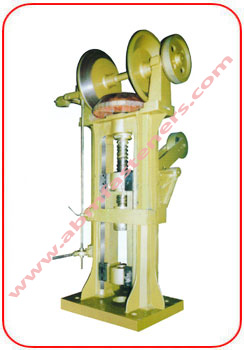

Forging Press, Up Stroke Press



FEATURES



  • Hot  Forgings.

  • Investment costs low & Cost for foundations are minimal.

  • The forging Dies have a long life.

  • Costs of development, manufacturer & replacement of the dies are low.

  • Great forging accuracy is achieved because of the free stroke.

  • Additional energy can be applied to the same die impression by making several blows.

  • The heat contact time considerably less than it with crank type forging presses & knuckle joint presses.

  • Cost of repairs after years of hard usage is low. Only skilled labor should be employed for its usage.

  • Forging presses are an answer for the forging of Round, Square and Hexagonal headed bolts as well as for nuts, rivets, Motor Parts, Cycle Parts and variety of such other items.

  • These presses are very simple in operation and their strokes can be achieved depressing a lever provided on the left hand column on the front of the press.



SPECIFICATION

Item Code No.

ABM-FM-7025 ABM-FM-7026 ABM-FM-7027 ABM-FM-7028 ABM-FM-7029
Capacity 50 Tons 100 Tons 150 Tons 250 Tons 350 Tons
Diameter of Screw 3" 4" 5" 6" 7"
Stroke of Press 15" 16" 20" 26" 32"
Max. Length of Job 8" 12" 16" 20" 26"
Max. Dia. of Job 1/2" 3/4" 1-1/4" 2" 2-1/2"
Strokes Per Minute 50 40 30 25 20
Motor  Required H.P. 5 H.P. 7.5 H.P. 10 H.P. 20 H.P. 30 H.P.
R.P.M. 1440 1440 1440 1440 1440
Net Approx. Weight in Kgs. 1600 Kg. 2200 Kg. 4100 Kg. 6500 Kg. 10500 Kg.
Height 7' - 6" 8' - 6" 10' - 6" 11' - 6" 13' - 6"



Hydraulic Thread Rolling Machines      Bicycle Spoke Machine







All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
