HEXAGONAL  WIRE  NETTING  MACHINES

(a) Hexagonal Wire Netting Making Machine
(b) Bobbin Winding Machine
(c) Spiral  Winding Machine

HEXAGONAL  WIRE  NETTING  MACHINE

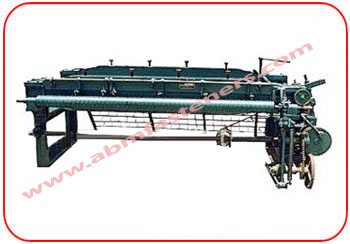

Hexagonal Wire Netting Machine   Hexagonal Wire Net



FEATURES

  • Machine produces netting from spring coil and pre-coiled bobbins.

  • Machine supplied with toolings to make any one size of mesh in different gauge thickness. Other mesh sizes can be made with additional main rack and parts supplied as optional equipment at additional cost.

  • Both a Bobbin Winding and a Spiral Winding machine are required to run the main machine.

  • Machine produces TRIPLE TWIST type of mesh.

OPERATIONS
  • Hexagonal Wire Netting Machine has a circular pinion holder on the front and rear of the machine.

  • The wires which are fed from the bobbins and also from the spiral coil (prepared in spiral coiling machine) placed on the front and rear rack of the machine produces the netting.

  • The net is pulled out by the take-up roller with stands on the surface of the machine and wound automatically on the winding roller.

  • When the length of netting reaches the predetermined length, the same is cut and removed from the roller.

  • The complete operation is then repeated.

SPECIFICATION
Item Code No. ABM-FM-6910 ABM-FM-6911 ABM-FM-6912
Weaving Width (mm) 2000 2000 2000
Mesh Size (mm) 15 - 20 25 40 - 50
Thickness Range (mm) 0.4 - 0.9 1.0 - 1.2 1.2
Motor H.P. 3 5 7.5
Net Weight 2500 2500 2500
Gross Weight 3500 3500 3500











BOBBIN  WINDING  MACHINES

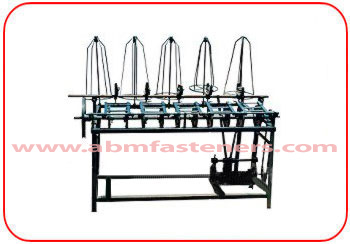

Bobbin Winding Machine



SPECIFICATION

Item Code No. ABM-FM-6920
Motor Required 1 H. P.
Net Weight of Machine 300  Kg.
Gross Weight of Machine 400  Kg.











SPIRAL  WINDING  MACHINES

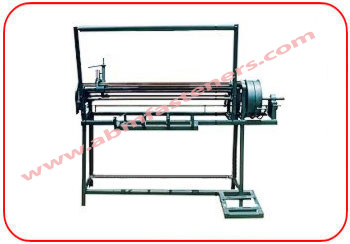

Spiral Winding Machine



SPECIFICATION

Item Code No. ABM-FM-6925
Motor Required 1 H. P.
Net Weight of Machine 175  Kg.
Gross Weight of Machine 250  Kg.





Razor Blade Barbed Wire Making Plant      Chain Link Fencing Machine





All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
