NUT  PLANT  (Automatic Nut Making Plant)





(a) Automatic Cold Forging Nut Former Machines
(b) Automatic Nut Tapping Machines  (Double Spindle)

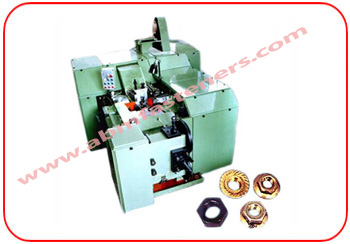

NUT  FORMING  MACHINES   (Automatic,  High Speed, Cold Forging)
(Five  Station  Nut  Former)





nut forming machine, nut making plant, nut header, cold forging nut making machines, five station nut former





FEATURES

DIE  CENTRE  DISTANCE

The  minimized  die  to  die  distance  is  a  basic  condition  for  high  speed  production  because  the  shortest  distance  takes  the  least  time  for  the  movement  of  the  transferring.



LUBRICATION  SYSTEM

The  lubrication  and  cooling  oil  are  pumped  through  the  oils  lines  built  outside  the  machine bodyPumps  are  equipped  with  oil  filters  to  prevent  the  dirt  from  flowing  into  the  oil  lines.



RATCHET  WHEEL  FEEDING  DEVICE

The  feeding  stopper  is  eliminated  due  to  high  accuracy  of  feedingTo  change t he  length  of  the  cut  off  requires  only  the  change  of  ratchet  wheel.



AIR  CLUTCH  AND  BRAKE

Motor,  Flywheel  with  air  clutch  and  brake  system  are  isolated  from  other  part  of  the  machine  for  better  air  circulationAir  clutch  and  brake  are  designed  to  permit  inching  for  tool  alignment  and  test  runs  during  set-up  stopping  is  always  in  the  backward  position  of  the  main  slide.



SPECIFICATION

Item
Code No.

ABM-FM-6440

ABM-FM-6441

ABM-FM-6442

ABM-FM-6443

ABM-FM-6444

ABM-FM-6445

ABM-FM-6446

ABM-FM-6447
Size M 4 M 6 M 8 M 9 M 10 M 12 M 16 M 20

Capacity

3/16"

1/4"

5/16"

3/8"

7/16"

1/2"

5/8"

3/4"

Production
Per Minute

200  Pcs.

160  Pcs.

140  Pcs.

110  Pcs.

90  Pcs.

80  Pcs.

60  Pcs.

50  Pcs.

Main Motor

5  H.P.

7.5  H.P.

10  H.P.

15  H.P.

15  H.P.

25  H.P.

30  H.P.

40  H.P.

Lubricator

1  H.P.

1.5  H.P.

1.5  H.P.

1.5  H.P.

2  H.P.

2  H.P.

2  H.P.

3  H.P.

Cooling Pump 2  H.P. 2  H.P. 2  H.P. 2  H.P. 2  H.P. 2  H.P. 2  H.P. 3  H.P.

Compressor

80 - 100 lbs

80 - 100 lbs

100 - 120 lbs

110 - 120 lbs

110 - 120 lbs

110 - 120 lbs

120 - 140 lbs

120 - 140 lbs

Weight Apx.

5000  Kg.

6500  Kg.

7500  Kg.

10000  Kg.

12000  Kg.

14000  Kg.

22000  Kg.

30000  Kg.

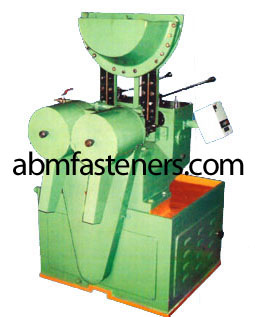

NUT  TAPPING  MACHINES  (Automatic,  Double  Spindle)

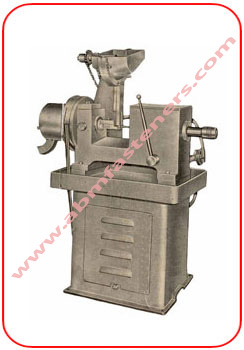

automatic nut tapping machine



FEATURES
ABM  TOOLS
Automatic  Hopper  Feed  Nut  Tapping  machines  are  most  economical  for  Tapping  machines  or  pressed  HexNuts  of  good  qualityThe  machines  are  designed  with  best  technique  and  the  breaking  of  taps  are  app.  eliminated.



SPECIFICATION



Item
Code No.

ABM-FM-6456

ABM-FM-6457

ABM-FM-6458

ABM-FM-6459

ABM-FM-6460

ABM-FM-6461

ABM-FM-6462

ABM-FM-6463
Size M 4 M 6 M 8 M 9 M 10 M 12 M 16 M 20

Capacity

3/16"

1/4"

5/16"

3/8"

7/16"

1/2"

5/8"

3/4"

Production
Per Minute

90  Pcs.

70  Pcs.

50  Pcs.

35  Pcs.

30  Pcs.

20  Pcs.

15  Pcs.

15  Pcs.

Main Motor

1  H.P.

2  H.P.

2  H.P.

2  H.P.

2  H.P.

2  H.P.

3  H.P.

3  H.P.

Weight Apx.

250  Kg.

250  Kg.

250  Kg.

250  Kg.

300  Kg.

300  Kg.

350  Kg.

350  Kg.









Bolt Making Plant      Machine Screw Making Plant







All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
