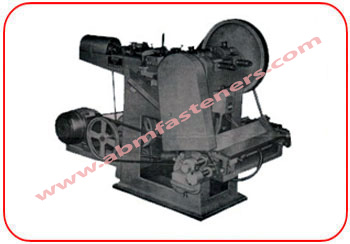

PAPER  PIN  MAKING  MACHINES



Paper Pin Making Machine



FEATURES

  • These  machines  are  used  for  making  Paper  Pins.

  • One Wire Stand and One Set of Dies is provided with the machine (Length as desired by customer)

SPECIFICATION
Item Code No. ABM-FM-6650
Wire Dia. S.W.G. 0.65 to 0.90 mm
Maximum Feeding Capacity 38 mm
Type of Wire Used MS Wire / Brass Wire / SS Wire
Area Required 5' x 7'
Length of Pin 3/4" to 1-1/2"
Maximum Nails per Minute 250 to 300 Pcs.
Power Required 2 H.P.  (1440 RPM)

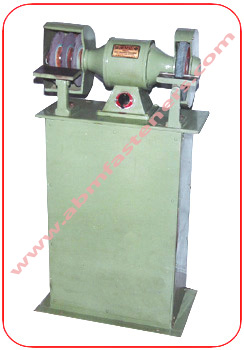

GRINDING  MACHINES





grinding machine





FEATURES

The  Grinding  Machine  is  specially  designed  to  sharpen  and  grinding  the  dies  and  cutters  of  the  machineIt  is  fitted  with  four  grinding  wheels  of  different  shapes  and  special  attachments

One  H.P. x 2600  R.P.M.  Motor  is  fitted  in  it.



SPECIFICATION

Item Code No. ABM-FM-6590
No of Grinding Wheels 4
Motor Required 1 H. P. x 2600 R.P.M.
Net Weight of Machine 150  Kg.
Gross Weight of Machine 180  Kg.



U Nail Making Machine      Straitening Cum Cutting Machines







All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
