SHOE  TACKS  MAKING  MACHINES
(High Speed)





(a) Shoe Tacks Making Machine
(b) Annealing Machine
(c) Polishing Drum

(c) Tool and Cutter Grinder

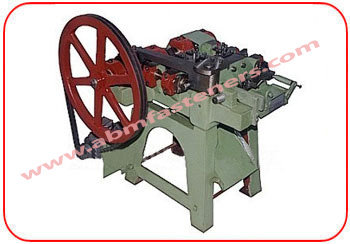

SHOE  TACKS  MAKING  MACHINES  (High Speed)





Shoe Tacks Making Machines high speed  Shoe Tacks



FEATURES

This machine is used to manufacture Shoe Tacks.

SPECIFICATION

Item Code No. ABM-FM-6600
Size 10 to 20 mm
Thickness of Wire Required 15 / 16  Gauge
(1.8 / 1.6 mm)
Wire H.H.B.  (Half Hard Bright) or
H.B. (Hard Bright)
Production Per Minute 250 to 300  Pcs.
Motor Required 2  H.P.
Net Weight of Machine 400  Kg.
Gross Weight of Machine 500  Kg.

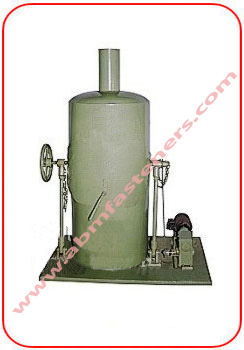

ANNEALING  MACHINE





Annealing Machine









FEATURES

For  annealing  and  giving  a  blue  colour  to  the  tacks.

SPECIFICATION
Item Code No. ABM-FM-6610
Container  Speed  (RPM) 36 - 40  RPM
Motor Required 0.5  H.P.
Capacity  per  15  Minutes 25 to 30 Kgs.
Net Weight of Machine 150  Kg.
Gross Weight of Machine 200  Kg.









POLISHING  DRUM

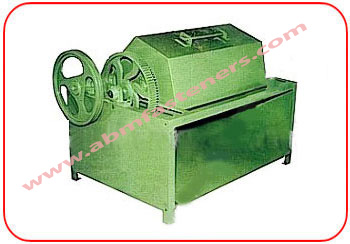

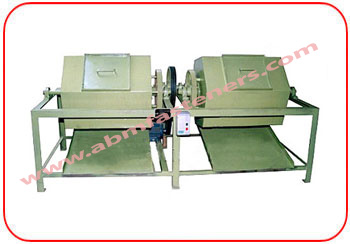

polishing drum single barrel  polishing drum double barrel





FEATURES

This  drum  is  used  for  scouring  and  polishing  mass  produced  articles (Wire  Nails,  Sheet  Nails,  Buckets,  etc.)The  nails  with  nippings  are  loaded  into  the  drums  and  suitable  quantity  of  saw  dust  and  leather  cutting  is  addedThereafter  they  are  tumbled  for  approximately  20 – 40  minutes  depending  on  the  dirt  accumulation  on  the  nailsThe  nippings  and  scouring  can  be  drawn  off  together  at  the  end  of  the  process,  if  the  machine  is  ordered  with  a  dust  filter  unit  with  an  exhausterOtherwise  the nails  can  be  separated  through  a  sieve  also.



SPECIFICATION
Item Code No. ABM-FM-6520 ABM-FM-6521
No. Of Drums Single Drum Double Drum
Output/ Charge 200 Kg. 400 Kg.
Batch Period (Min.) 30 - 40 30 - 40
Motor Required 2  H.P. 3  H.P.
Net Weight of Machine 500  Kg. 800  Kg.
Gross Weight of Machine 560  Kg. 900  Kg.















GRINDING  MACHINES





grinding machine





FEATURES

The  Grinding  Machine  is  specially  designed  to  sharpen  and  grinding  the  dies  and  cutters  of  the  machineIt  is  fitted  with  four  grinding  wheels  of  different  shapes  and  special  attachments

One  H.P. x 2600  R.P.M.  Motor  is  fitted  in  it.



SPECIFICATION

Item Code No. ABM-FM-6590
No of Grinding Wheels 4
Motor Required 1 H. P. x 2600 R.P.M.
Net Weight of Machine 150  Kg.
Gross Weight of Machine 180  Kg.





Wire Nail Making Plant      Horse Shoe Nail Making Machines









All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
