STEEL  BALL  PLANT  (Automatic, High Speed)





(a) Automatic High Speed Single Stroke Cold Heading Machines
(b) Ball Flashing Machine
(c) Ball Grinding Machine
(d) Salt Lapping Machine





SINGLE  STROKE  COLD HEADING  MACHINES  (Automatic,  High Speed)
(Solid Die)





double stroke header, high speed   Steel Balls



FEATURES

  • These cold heading machines are fully automatic and easy to operate with little training, fitted with Solid Die to produce Steel Ball and other similar components. Cut off and knock out mechanism have safely devices that will stop any major accident if any abnormal function occurs in machines.

  • A positive knock out provision had been made on the 1st and 2nd punches to eliminate the possibility of parts sticking to these punches during the operations. The maximum parts of the machines are ground and all the Cames and Rollers  from H.C.H.C. ( Hardened & Ground ).

  • On  some  extra  charges machines will be equipped with Pneumatic Clutch & Automatic Centralized Lubrications systems which provides sufficient quantity lubricating to all bearing surface.

SPECIFICATION



Item Code No. Steel  Ball  Dia. Production
Per Minute
Motor H.P.
ABM-FM-6750 1/8" to 5/16" 180  Pcs. 3
ABM-FM-6751 1/8" to 5/32" 200  Pcs. 2
ABM-FM-6752 5/16" to 1/2" 130  Pcs. 7.5
ABM-FM-6753 3/8" to 3/4" 100  Pcs. 20















BALL  FLASHING  MACHINE



Ball Flashing Machine



FEATURES
  • This is used in the second operation of ball manufacturing process.

  • Maximum stock removal from ball is done by machine with aid of two special cast Iron plated duly hardened and tempered known as gap tool and ring plate.

  • The loading capacity of this machine is 300 kg and the consumption of electricity is 24 Kw technically sound so sound this is made that accuracy level upto + 15 microns is achieved from this machine.

SPECIFICATION

Item Code No.
ABM-FM-6760















BALL  GRINDING  MACHINE

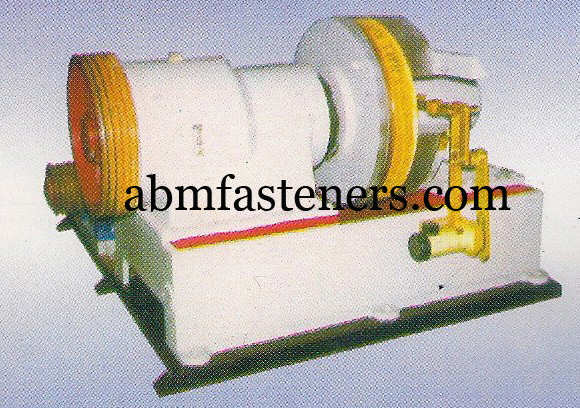

Ball Grinding Machine



FEATURES

  • This machine is used for stock removal of heat treated balls and also to control the ovality and improve good surface finish.
  • The machine consists of one abrasive wheel and one gap plate of alloy cast iron.
  • Also four diamond dressers are used to dress the abrasive wheel.
  • These diamonds automatically dresses the abrasive wheel with a special attachment while grinding machine is working.
  • The loading capacity of this machine is 250 Kgs. And power consumption is 17 HP  (with Drive Type of Dyno Drive or Frequency Drive)  with 30 KW planetary gear box.

SPECIFICATION


Item Code No.
ABM-FM-6770










BALL  LAPPING  MACHINE

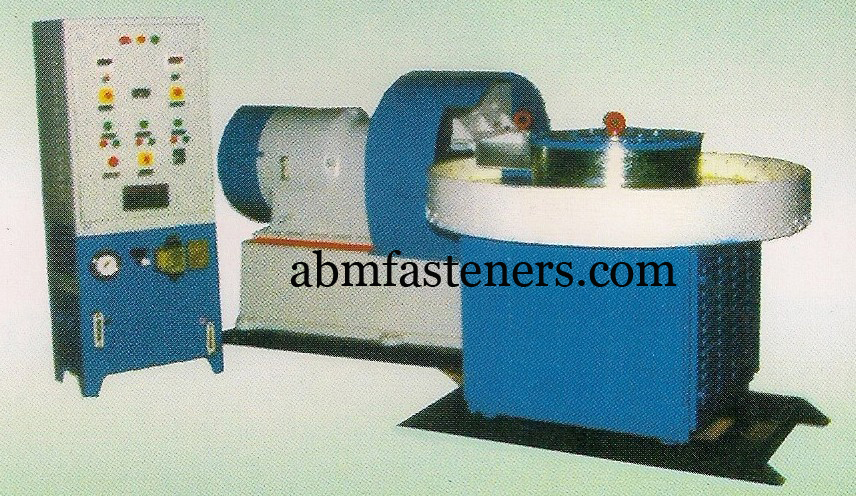

Ball lapping Machine
FEATURES
  • This machine is used in the final operation of Ball manufacturing.
  • In ball lapping not only the super finish is obtained but also the geometrical parameters are controlled for high precision balls.

  • The loading capacity of this machine is 100 Kg. to 200 Kg.

  • In  vertical and Horizontal type machine and electricity consumption is 15 HP (with drive type of dyno drive or frequency drive).

  • The tools plates used in thie machine are of graded cast Iron.

  • The machine is built up with so advanced technology that the accuracy level upto 0.005 mm.

SPECIFICATION
Item Code No.
ABM-FM-6780









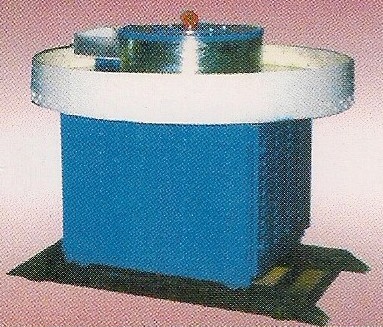

CONVEYOR
Conveyor
CONVEYOR

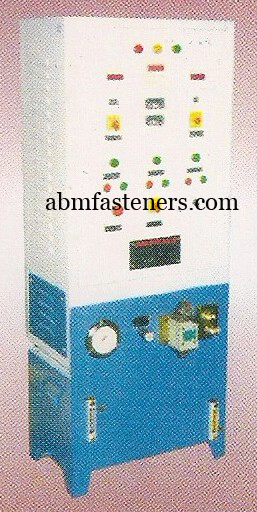

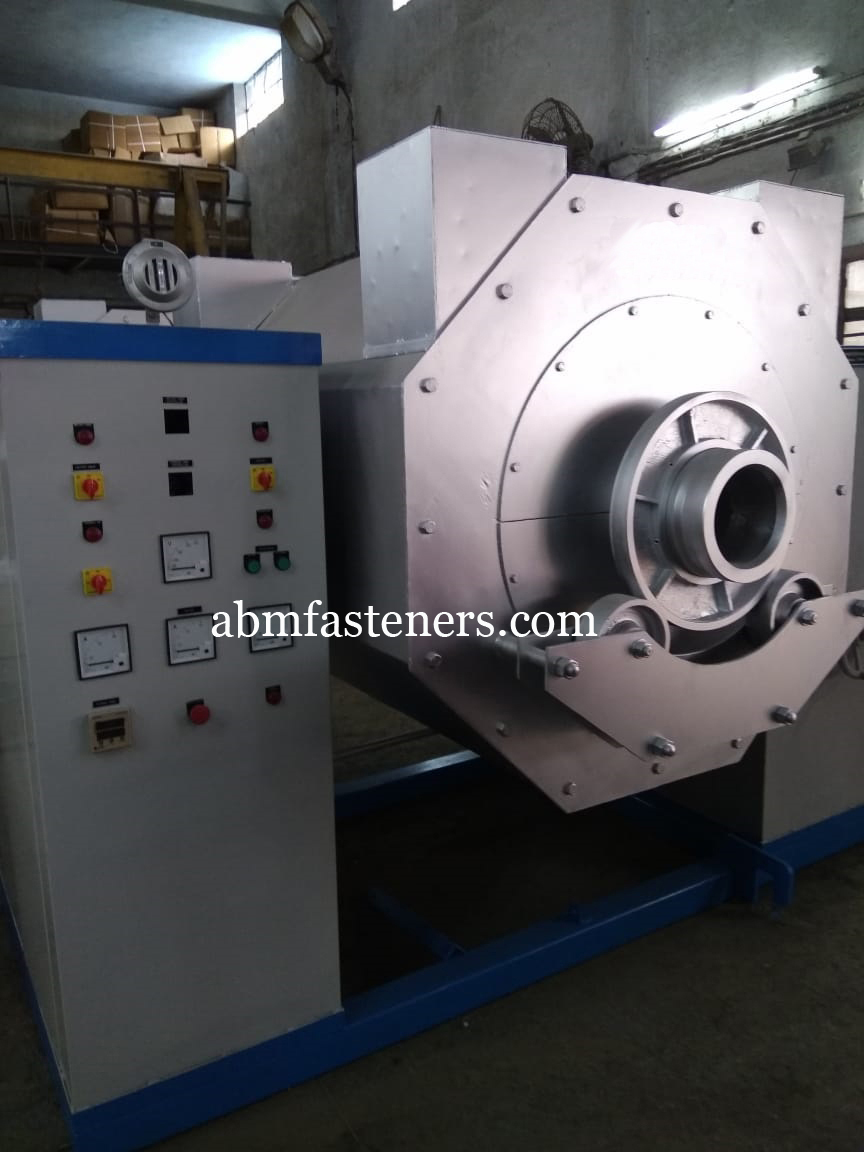

Control panel

  OUTLET CHUTE

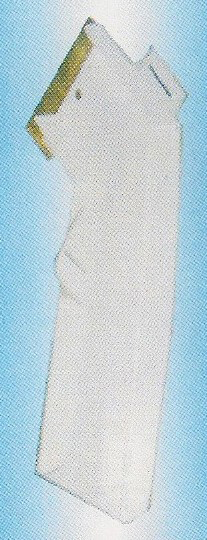

  Outlet chute








Taper Roller Bearing Plant      Wire Drawing Plant Single Block
