UNIVERSAL  WIRE  WEAVING  LOOM
(Wire Mesh Plant)

(a) Universal Wire Weaving Loom
(b) Bobbin Winding Machine

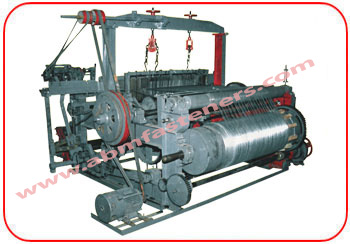

UNIVERSAL  WIRE  WEAVING  LOOM



Universal Wire Weaving Loom, Wire Mesh Plant   Wire Mesh



FEATURES

  • Machine can produce plain fine-mesh Wire netting fabric.

  • Available in various types depending on the size of the mesh and the wire gauge.

  • The wire material can be Galvanized Iron, Black Iron, Brass, Copper, Stainless Steel, Silver, Platinum, etc.

SPECIFICATION
Item Code No. ABM-FM-6930 ABM-FM-6931 ABM-FM-6932
Weaving Width (mm) 1250 1250 1250
Mesh Size (mm) 10 - 100 4 - 30 2 - 20
Wire Thickness Range (mm) 0.18 - 0.50 0.30 - 1.00 0.60 - 1.60
Speed (Stroke Per Minute) 60 50 50
Motor H.P. 5 5 10
Net Weight 1300 2000 4000
Gross Weight 1800 2500 4800











BOBBIN  WINDING  MACHINES





Bobbin Machine, Bobbin Winding Machine



SPECIFICATION

Item Code No. ABM-FM-6940
Motor Required 1 H. P.
Net Weight of Machine 300  Kg.
Gross Weight of Machine 400  Kg.





Chain Link Fencing Machine      Welded Mesh Machines





All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
