UMBRELLA  TYPE  NAIL  MAKING  MACHINES
(Washer Head  Roofing Nail Making Machine) (Crank Type)



(a) Nail and Washer Assembling Machine
(b) Power Press
(c) Polishing Drum

(c) Tool and Cutter Grinder

NAIL  AND  WASHER  ASSEMBLING  MACHINE



Nail and Washer Assembling Machine



FEATURES

  • These  machines  are  used  for Nail  manufacturing and  Washer  assembling  machine.

PLANT  SPECIFICATION

  • The plant  consists  of  the  main  machine,  washer  cutting  press, polishing barrel  and  nail  cutter  and  die  die grinding machine.

  • Suitable  for  plain  type  and  twisted  type  roofing  nails.

  • Twisted  Roofing  Nails  require  an  Optional  Thread  Rolling  Machine.

  • Plain  Washers  made  on  the  press  are  fed  in  the  hopper  of  the  main  machine.  On  every  stroke, one  washer  is  inserted,  given  shape  and  fixed  into  the  nail.

  • Ready  nails  are  then  polished  in  the  Polishing  Barrel.

SPECIFICATION
Item Code No. ABM-FM-6640
Wire Dia. S.W.G. 15 to 9  (1.8 to 3.6  mm)
Maximum Length 75 mm  (3 Inch)
Effective Length 25 to 75 mm (1 to 3 Inch)
Maximum Nails Per Minute 80 Pcs.
Power Required 5 H.P.  (3.7 KW.)

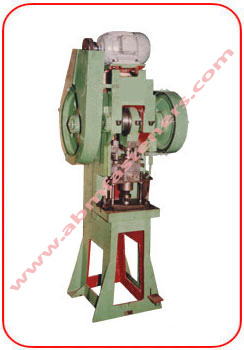

POWER  PRESS





Power Press for Umbrella Head









FEATURES

It is used for Washer Cutting.

SPECIFICATION
Item Code No. ABM-FM-6645
Capacity 5  Tons
Motor Required 2  H.P.
Net Weight of Machine 350  Kg.
Gross Weight of Machine 450  Kg.









POLISHING  DRUM



polishing drum polishing drum





FEATURES

This  drum  is  used  for  scouring  and  polishing  mass  produced  articles (Wire  Nails,  Sheet  Nails,  Buckets,  etc.)The  nails  with  nippings  are  loaded  into  the  drums  and  suitable  quantity  of  saw  dust  and  leather  cutting  is  addedThereafter  they  are  tumbled  for  approximately  20 – 40  minutes  depending  on  the  dirt  accumulation  on  the  nailsThe  nippings  and  scouring  can  be  drawn  off  together  at  the  end  of  the  process,  if  the  machine  is  ordered  with  a  dust  filter  unit  with  an  exhausterOtherwise  the nails  can  be  separated  through  a  sieve  also.



SPECIFICATION
Item Code No. ABM-FM-6520 ABM-FM-6521
No. Of Drums Single Drum Double Drum
Output/ Charge 200 Kg. 400 Kg.
Batch Period (Min.) 30 - 40 30 - 40
Motor Required 2  H.P. 3  H.P.
Net Weight of Machine 500  Kg. 800  Kg.
Gross Weight of Machine 560  Kg. 900  Kg.















GRINDING  MACHINES





grinding machine





FEATURES

The  Grinding  Machine  is  specially  designed  to  sharpen  and  grinding  the  dies  and  cutters  of  the  machineIt  is  fitted  with  four  grinding  wheels  of  different  shapes  and  special  attachments

One  H.P. x 2600  R.P.M.  Motor  is  fitted  in  it.



SPECIFICATION

Item Code No. ABM-FM-6590
No of Grinding Wheels 4
Motor Required 1 H. P. x 2600 R.P.M.
Net Weight of Machine 150  Kg.
Gross Weight of Machine 180  Kg.















Horse Shoe Nail Making Machines      U Nail Making Machines







All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
