WELDED  MESH  MACHINES
(Welded Wire Mesh Plant)

Download Catalogue (PDF)

1.   Welded  Mesh  (Wire Dia.  5 mm to 12 mm)
2.   Welded  Mesh  (Wire Dia.  3 mm to 6 mm)
3.   Welded  Mesh  (Wire Dia.  3 mm to 6 mm)

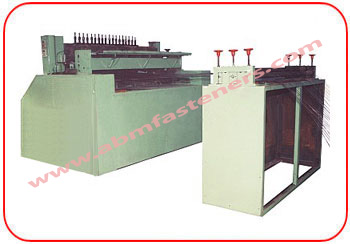

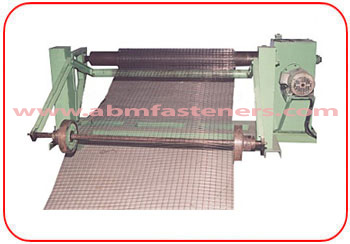

WELDED  WIRE  MESH  MAKING  MACHINE



Welded Wire Mesh Making Machine, Welded mesh machine, Welded Wire Mesh Plant   Welded Mesh



FEATURES

  • The entire system is controlled by Electronic Panel based on Thyrister and D.C. Drive Control Panels.

PLANT  DETAILS
  • Set the desired welding points and start the machine.

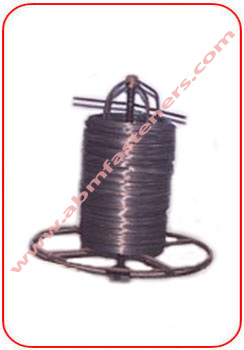

  • The line wires from the Pay Off stands / swift standing on the rear side of the machine are drawn through wire straightener.
  • Cross wire duly pre straightened and cut to length are dropped from the rack standing on top of welding station.
  • The line and cross wires are rhythmically welded as desired.
  • The speed of welding is controlled through the control panel.

SPECIFICATION



1. A) ABM”Brand, Welded wire mesh machine (1 Nos.)   Machines Details:-



Model no.

ABM-125

Width

2.5 meters.

Wire dia

5 M.M. to 12 M.M.

Mesh Opening Size Vertical

100 to 300 M.M , 400 & 500

Mesh Opening Size Horizontal

50 to 300 MM ,400 & 500

Welding  per min

50 to 70 Nos.

Transformers ( Water Cooling )

125 KVA  13 Nos.

Voltage

380

Current Frequency

50 HZ

Control System

PLC Totally Touch Screen ( Mitsubishi )

Welding  Type

Pneumatic ( Electric resistance Welding )

Mesh Panel Stretch Type

M  ( Servo Motor )  Delta Buttons , Delixi

Vertical Wire feeding Type

Pre – Straightening & cutting

Horizontal Wire feeding Type

Pre – Straightening & cutting

Cross Wire Feeder Hopper

1 Ton

Outside Dimensions

20 x 4 x 2 Meter

Weight

9 Ton Approx.

Raw materials

Reinforced steel bar



B.(i) ABM”Brand, Wire Straightening Machine. (2 nos.)



Width

2.5 meters

Wire dia

4 M.M. to 8 M.M.

 Production

30 to 60 m Per min

Single Wire charkha

2 nos.

         With motor, gear box and Charkha



B.(ii)ABM”Brand, Wire Straightening Machine. (2 nos.)



Width

2.5 meters

Wire dia

5 M.M. to 12 M.M.

 Production

30 to 60 m Per min

Single Wire charkha

2 nos.

With motor, gear box and Charkha



C.)ABM”Brand, wire mesh welding machine mesh Dropping System  (1 nos.)



Width

2.5 meters

Wire dia

5 M.M. to 12 M.M.



D.)ABM”Brand,  Wire Mesh welding machine Air Compressor & Gas Holder



Width

2.5 meters

Wire dia

5 M.M. to 12 M.M.





E.“ABM”Brand, Mesh Cutter Machine



Wire Dia

4- 8 mm

Power

Hydraulic

Cutting Width

2500 mm

Travel times

Ø  14 times / Min

Bumper Distance

600 mm

Cutting Angle

0.5 -2 Degree

Power

11 Kw



I.             “ABM ”Brand, Mesh Dropping System Automatically



F.)ABM”Brand,  Butt Welding Machine



Wire Dia

4-8 mm

Width

2.5 meters





2. A) ABM ”Brand, Welded Wire Mesh Machine (1 Nos.)   Machines Details:-

Model no.

 ABM 124

Width

2.5 Meters.

Wire dia

3 M.M. to 6 M.M.

 Mesh size

50 M.M. to 200 M.M.

Welding  per min

50 to 70 Nos.

Transformers

150 KVA  6 Nos.

Control System

 PLC Control ( Mitsubishi )



B. ABM ”Brand, Wire Straightening Machine with Motor & Gear Box. (2 Nos.)

Width

2.5 meters

Wire dia

3 M.M. to 6 M.M.







C.)ABM ”Brand, Cross Wire feeding System  (1 nos.)

Width

2.5 meters.

Wire dia

3 M.M. to 6 M.M.







D.)ABM ”Drag Mesh Device  ( I nos.)



3.) A. ABM ”Brand, Welded wire mesh machine (1 Nos.)   Machines Details:-

Model no.

ABM 123

Width

1. 5 Meters

Wire dia

  3 M.M. to 6 M.M.

 Mesh size

50 M.M to 300 M.M.

Welding  per min

40 to 60 Nos.

Transformers

140 KVA  4 Nos.

Productions metals

G. I, M. S Wire  low carbon

Control System

 PLC Control ( Mitsubishi)











B. ABM ”Brand, Wire Straightening Machine with Motor & Gear Box. (2 Nos.)

Width

1.5 meters

Wire dia

3 M.M. to 6 M.M.







C.)ABM ”Brand, Cross Wire feeding System  (1 nos.)

Width

1.5 meters.

Wire dia

3 M.M. to 6 M.M.







D.)ABM ”Drag Mesh Device  ( I nos.)





  VIDEO










Universal Wire Weaving Loom      High Speed Thread Rolling Machines





All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.

Manufactured by ABM Fasteners (India) and Export Marketing by ABM Tools
