WOOD SCREW MAKING PLANT  (Automatic) (High Speed)











(a) Automatic High Speed  Double Stroke Cold Heading Machines
(b) Automatic Screw Head Slotting Machines
(c) Automatic Thread Cutting Machines
(d) Polishing Barrel

















DOUBLE  STROKE  COLD  HEADING  MACHINE  (Automatic,  High Speed)











double stroke header, high speed   Wood Screw











FEATURES





  • These cold heading machines are fully automatic and easy to operate with little training, fitted with Solid Die to produce blank for Bolts, Screws, Rivets and other similar components. Cut off and knock out mechanism have safely devices that will stop any major accident if any abnormal function occurs in machines.

  • A positive knock out provision had been made on the 1st and 2nd punches to eliminate the possibility of parts sticking to these punches during the operations. The maximum parts of the machines are ground and all the Cames and Rollers  from H.C.H.C. ( Hardened & Ground ).

  • On  some  extra  charges machines will be equipped with Pneumatic Clutch & Automatic Centralized Lubrications systems which provides sufficient quantity lubricating to all bearing surface.




  SPECIFICATION



Item Code No. Length of Screw Dia. of Screw Production
Per Minute
Motor H.P.
ABM-FM-6480 3/4"  (2 mm - 20 mm) 1/8" (1 mm - 3 mm) 125 - 150  Pcs. 1 x 1400
ABM-FM-6481 1-1/2" (4 mm - 36 mm) 3/16" (2 mm - 5 mm) 110 - 125  Pcs. 2 x 1400
ABM-FM-6482 2"  (7 mm - 50 mm) 1/4" (3 mm - 6 mm) 100 - 110  Pcs. 5 x 960
ABM-FM-6483 2-1/2"  (7 mm - 65 mm) 5/16" (4 mm - 8 mm) 90 - 100  Pcs. 7.5 x 960
ABM-FM-6484 3"  (10 mm - 75 mm) 3/8" (5 mm - 10 mm) 70 - 75  Pcs. 10 x 960
ABM-FM-6413 4"  (25 mm - 100 mm) 1/2" (8 mm - 12 mm) 60 - 65  Pcs. 20 x 960
ABM-FM-6415 6"  (50 mm - 150 mm) 3/4" (12 mm - 20 mm) 35 - 40  Pcs. 40 x 960

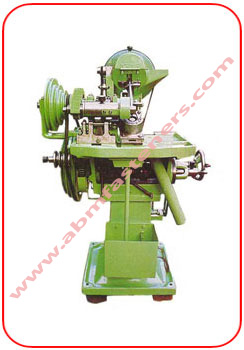

SCREW HEAD SLOTTING  MACHINE
(Automatic,  High Speed)











screw head slotting machine, head slotter machine







FEATURES





ABM  Tools  Automatic  Screw  Head  Slotting  Machines  have  been  developed  for  fast  &  economic  slotting  of  big  quantities  of  screws  in current  dimensions.



Advantages  for  the  industry.

  • Automatic  sequence  of  operation

  • Minimum  set-up  time.

  • Low  cost.

  • High  efficiency




  SPECIFICATION



Item Code No. Length of Screw Dia. of Screw Production
Per Minute
Motor H.P.
& R.P.M.
ABM-FM-6490 1"  (6 mm - 25 mm) 1/8" (2 mm - 3 mm) 90 - 110  Pcs. 1 x 1400
ABM-FM-6491 1-1/2" (8 mm - 40 mm) 3/16" (3 mm - 5 mm) 90 - 100  Pcs. 1 x 1400
ABM-FM-6492 2"  (12 mm - 50 mm) 1/4" (4 mm - 6 mm) 80 - 90  Pcs. 2 x 1400
ABM-FM-6493 2-1/2"  (25 mm - 65 mm) 5/16" (5 mm - 8 mm) 70 - 80  Pcs. 2 x 1400
ABM-FM-6494 3"  (40 mm - 75 mm) 3/8" (6 mm - 10 mm) 50 - 60  Pcs. 3 x 1400
ABM-FM-6495 4"  (25 mm - 100 mm) 1/2" (8 mm - 12 mm) 40 - 50  Pcs. 5 x 1400
ABM-FM-6496 6"  (50 mm - 150 mm) 3/4" (12 mm - 20 mm) 30 - 40  Pcs. 5 x 1400



















THREAD  CUTTING  MACHINES  (Automatic)











woodscrew making machine, automatic thread cutting machines











FEATURES





A Thread Cutting Machine job is to cut thread on blank of wood screws. The slotted blanks are placed in a hopper at top from which automatic slide down with the aid of feeder. A picker hold each blank one by one and feed into a chuck and tool cut thread on the blank and threaded screws talls down in a receptable.











SPECIFICATION





Item Code No. Length of Screw Wire Size S.W.G. Production
Per Minute
Motor H.P. &
R.P.M.
ABM-FM-6510 3/8" - 1-1/2" 9 - 14  S.W.G 15 - 25  Pcs. 0.75 x 1440
ABM-FM-6511 1/2" - 2" 4 - 12  S.W.G 10 - 15  Pcs. 1 x 1440
ABM-FM-6512 1/2" - 3" 2 - 12  S.W.G 9 - 12  Pcs. 1.5 x 1440
ABM-FM-6513 1/2" - 4" 8 - 0  S.W.G 4 - 6  Pcs. 1.5 x 1440
ABM-FM-6514 2" - 6" 5 - 0  S.W.G 4 - 5  Pcs. 2 x 1440























POLISHING  BARREL



  polishing drum  polishing drum



FEATURES

This  drum  is  used  for  scouring  and  polishing  mass  produced  articles (Wire  Nails,  Sheet  Nails,  Buckets,  etc.)The  nails  with  nippings  are  loaded  into  the  drums  and  suitable  quantity  of  saw  dust  and  leather  cutting  is  addedThereafter  they  are  tumbled  for  approximately  20 – 40  minutes  depending  on  the  dirt  accumulation  on  the  nailsThe  nippings  and  scouring  can  be  drawn  off  together  at  the  end  of  the  process,  if  the  machine  is  ordered  with  a  dust  filter  unit  with  an  exhausterOtherwise  the nails  can  be  separated  through  a  sieve  also.



  SPECIFICATION

Item Code No. ABM-FM-6520 ABM-FM-6521
No. Of Drums Single Drum Double Drum
Output/ Charge 200 Kg. 400 Kg.
Batch Period (Min.) 30 - 40 30 - 40
Motor Required 2  H.P. 3  H.P.
Net Weight of Machine 500  Kg. 800  Kg.
Gross Weight of Machine 560  Kg. 900  Kg.







Machine Screw Making Plant      Coach Screw Making Plant









All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
