JIB  CRANE



Download Catalogue (PDF)

(a)  Moveable  Jib  Crane

  (b)  Fixed  Jib  Crane

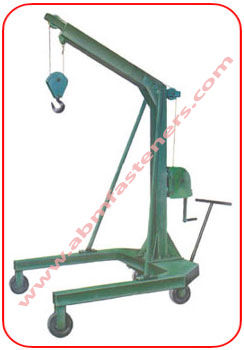

  (a)  Moveable  Jib  Crane


Jib Crane

APPLICATION

  • A manual mobile Material Handeling Machine suitable for indoor and outdoor services.

  • It is the basic requirement in all the Motor Garages and Machine shops for loading and unloading of Engines and Materials from the Vehicles.

SALIENT FEATURES

  • It can be fully dismantled in four parts as Bottom Carriage, Column and JIB, Tie Rods and Winch Assembly.

  • Easy Steering.

  • Maneuverable Within Confined Spaces.

  • Ideal for general handling of goods in the Ware Houses and Workshops.

TECHNICAL DATA

ITEM CODE NO. ABM-MH-6290 ABM-MH-6291 ABM-MH-6292 ABM-MH-6293 ABM-MH-6294
CAPACITY 0.5  Ton 1 Ton 2 Ton 3 Ton 5 Ton
OVERALL HEIGHT 2700 2800 2800 3000 3000
OVERALL LENGTH 1600 1650 1700 2000 2000
OVERALL WIDTH 1000 1300 1300 1500 1500
CLEAR SPAN BETWEEN FORK 840 1140 1140 1300 1300
LIFT (MAX) 2100 2100 2100 2200 2200
WHEEL DIA. 145 145 145 200 200

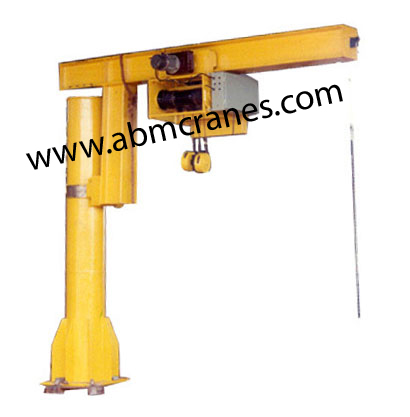

  (b)  Fixed  Jib  Crane

  Jib Crane Fixed



Our clients can avail from us a wide range JIB crane that is used in engineering unit for handling light weight in critical area. These are fabricated using light weight material that makes our range of JIB crane durable to carry materials in critical space. In addition, these can easily be handled by a single person.

Features  :

* Light weight
* Durable
* Reduces labor cost
* Easy handling
* Less time consuming
* Multi-functional within Work Area










Gantry Crane      Hydraulic Lifting Table





All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
