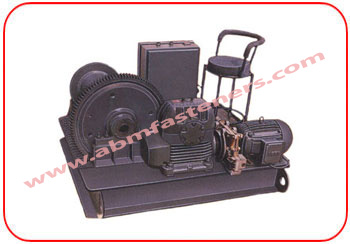

WINCH  MACHINE  (With Electric Wire Rope)



Winch Machine

SALIENT FEATURES

  • "ABM" Power Driven Winch Machines are designed as per IS : 9507 - 1979 and are suitable for Heavy Duty applications.

  • Speeds other then given in Technical Data can also be available.

  • Generally, Winches with Right Hand Operation are manufactured, however the same can be supplied with outer side operation also as per requirement

BASE FRAME

  • Fabricated with Rolled Steel Sections / Plates properly ribbed, floored with Chequered plate for working area, Lifting lugs, Anchoring Holes for foundation, provided.

REDUCER

  • 1st stage reduction with Worm Reduction Gear Box of reputed make & other reduction with open Spur Gears & Pinions.

ROPE DRUM

  • Steel Fabricated Drum duly machined, with flanges at both ends, winding capacity 100 mtr. of Wire Rope.

  • Drums with larger winding capacity is also available.

WIRE ROPE

  • 6 x 19, IWRC construction, best plough steel confirming to IS - 2266 is supplied with Winch machine at extra cost.

MOTORS

  • High Starting Torque, class 'B' Insulation, 150 Starts / Hr, 415 V, 50 Hz, 3 Phase, A.C. Insulation, Squirrel Cage / Slipring Motors confirming to IS-325 of reputed make like NGEF / AEI / SIMENS etc.

CONTROL & CONTROL PANEL

  • The winch is operated by Push Button Station / controller at 110 V, fixed on machine.

  • The Control equipments like Tripple Pole Reversible Contactors, H.R.C. fuses, Pilot Lamp etc. of reputed make like EE / BCH / LT are housed in dust & Vermin Proof Steel Sheet Panel Box.

  • One step down transformer is also provided for safety of operating Personnel.

  • Overload Relay with single Phasing protection is provided at extra cost.

BRAKE

  • Electromagnetic / Electro Hydraulic Thruster, DOuble Shoe Type Brake and / or Hand Operated brake provided as per requirement.

LIMIT SWITCH

  • Rotary Gear Type Switch is provided to prevent over Hoisting / Traveling at extra cost, if required.

TEST

  • All machines are tested at 25% overload.

SPECIFICATION



Item Code No. Rope Tension
in Kg. Capacity
Rope Speed
in Mtr / Min
Rope Dia.
in  mm
Motor Power
in H.P.
ABM-FM-6220 1000 7 10 3
ABM-FM-6221 1000 10 10 5
ABM-FM-6222 2000 7 13 5
ABM-FM-6223 2000 10 13 7.5
ABM-FM-6224 3000 7 16 7.5
ABM-FM-6225 3000 10 16 10
ABM-FM-6226 5000 6 22 10
ABM-FM-6227 5000 9 22 15
ABM-FM-6228 8000 7 28 15
ABM-FM-6229 8000 7.5 28 20
ABM-FM-6230 10000 4.5 32 15
ABM-FM-6231 10000 6 32 20
ABM-FM-6232 12500 3.6 36 15
ABM-FM-6233 12500 6 36 25
ABM-FM-6234 15000 4 40 20
ABM-FM-6235 15000 6 40 30
ABM-FM-6236 20000 3 50 30
ABM-FM-6237 20000 7.5 50 50







Crab Winch Hand Operated      Gantry Crane





All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
