WIRE ROPE ELECTRIC HOIST

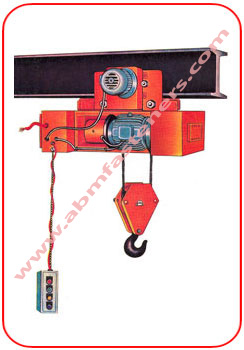

Wire Rope Electric Hoist

DESIGN

  • "ABM" Electric Wire Rope Hoists are designed as per IS : 3938 - 1983 and are suitable for medium and heavy duty applications.

CONSTRUCTION

  • "ABM" Hoist have a unique modular construction which makes them an ideal choice since each sub assembly is easily accessible individually thus reducing the time and cost involved in the maintenance.

FRAME

  • The main plates of tested quality steel are welded / bolted to form very rugged frame.

ROPE DRUM

  • Rope Drum is fabricated out of mild steel or seamless tube and is machined and grooved in accordance with IS : 3838 to accommodate full length of Wire rope in one layer.

GEAR BOX

  • Totally enclosed, Immersed oil lubricated gear box houses the gear machined out of EN-9 / EN-24 steel and teethed on precision Hobbing machines.

MOTORS

  • Hoist duty 415 V, 50 Hz,  3 Phase, A.C., Sqirrel Cage motors with 40% CDF 'B' class insulation and of ample rating and standard make.

HOOK

  • Conforming to IS : 8610 Free to rotate & Swivel.

BRAKE

  • Instant action "FAIL TO SAFE" Electro Magnetic auto manual DSIC / SHOE Brakes ensures maximum safety and reliability.

WIRE ROPE

  • 6 x 37 construction, FMC, best plouging steel tested Wire Rope as per IS : 2266 is used of reputed make like Usha Martin / Ford William etc.

LIMIT SWITCH

  • Snap action limit switch to prevent over hoisting and over lowering is provided for maximum safety, make BCH / UNICON.

PANEL

  • Totally enclosed, Dust and Vermin Proof-housing components of standards make like SIEMENS / BCH / L & T, provides control at low voltage for safety of the operator.

CONTROL

  • From push button pendent station supported with steel link Chain / Wire Rope, operating at 110 Volt.

TECHNICAL DATA
Item Code No. Capacity
in Kg.
lift
in Mtr.
H. Speed
Mtr / Min
H Motor
H.P.
C.T. Speed
Mtr / Min
C.T.
Motor H.P.
ABM-MH-6320 25 6 8 0.75 15 0.25
ABM-MH-6321 500 6 6 1.00 15 0.25
ABM-MH-6322 1000 6 6 2.00 15 0.33
ABM-MH-6323 1500 6 4 2.00 15 0.50
ABM-MH-6324 2000 6 3 2.00 15 0.50
ABM-MH-6325 2000 6 4 3.00 15 0.50
ABM-MH-6326 3000 6 3 3.00 15 0.50
ABM-MH-6327 5000 6 3 5.00 15 0.75
ABM-MH-6328 7500 6 3 7.50 15 1.00
ABM-MH-6329 10000 6 3 10.00 15 1.00
ABM-MH-6330 12500 6 3 12.50 15 1.50
ABM-MH-6321 15000 6 3 15.00 15 1.50







Chain Block Manual      Crab Winch Hand Operated



All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
