RAZOR  BLADE  BARBED  WIRE  MAKING  PLANT
(Razor Blade Barbed Wire Making Machines)  (Fencing Wire Making Machine)
(Punched Tape Concertina Making Machine)

Download Catalogue (PDF)

(a) Strip  Punching Press (For making Concertina / Razor Blades)
(b) Razor Blade and Wire Assembling Machine

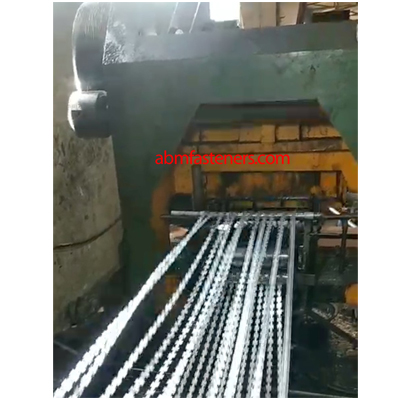

STRIP  PUNCHING  PRESS

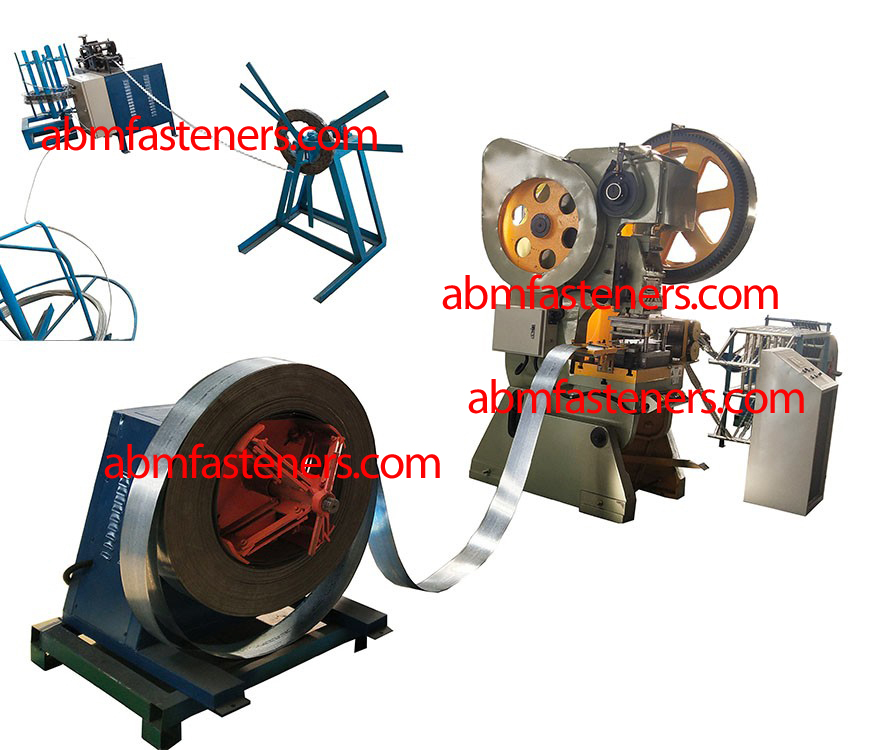

Razor Blade Barbed Wire Making Plant   Razor Wire,razor Blade Barbed Wire Making Machines,Punched Tape Concertina Making Machines



FEATURES

  • These  machines  are  used  for  manufacturing  Concertina / Razor Blades.

PLANT  DETAILS
  • The punched tape concertina / razor barbed wire has the following advantages over the conventional barbed wire: It has sharper barbs (blades), the blades are not prone to sagging and since both their sides are flat, in addition to the zinc coating already provided, one can easily coat them with anti-corrosive red oxide or paint to increase the life many-fold.
  • One kilogram of the punched tape concertina / razor barbed wire measures approximately 12 meters in length.

SPECIFICATION


Strips

7  STRIPS

9  STRIPS

11  STRIPS

13  STRIPS

17  STRIPS

Item Code No.

ABM-FM-6900A

ABM-FM-6900B

ABM-FM-6900C

ABM-FM-6900D

ABM-FM-6900E

Press Capacity

30  Ton

40 Ton

50 Ton

60 Ton

80 Ton

Production Per hour

120 Kg / H

160 Kg / H

190 Kg / H

230 Kg / H

300 Kg / H

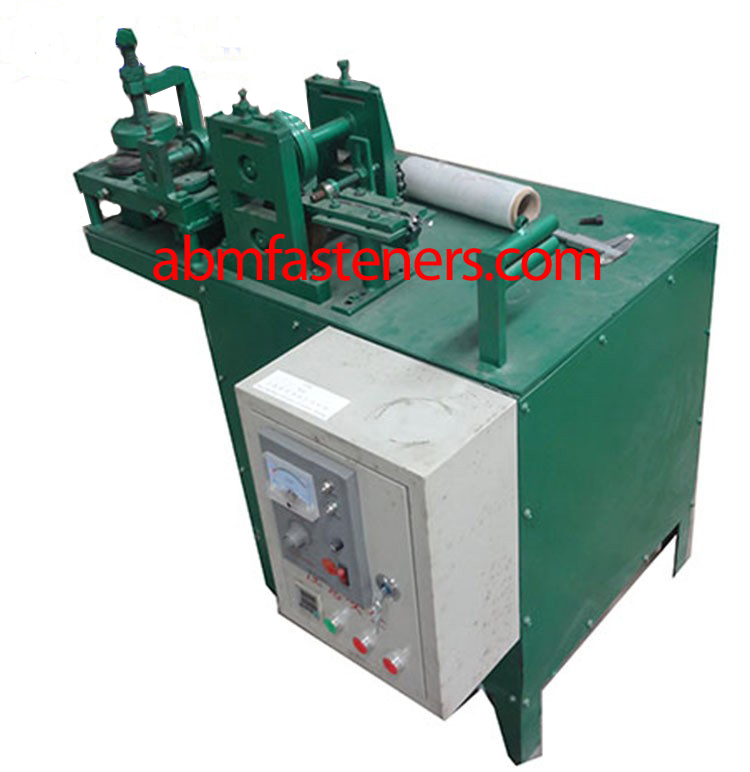

RAZOR  BLADE  AND  WIRE  ASSEMBLING  MACHINE (Strip and Wire Assemblying Machine) (Covering Machine)





Covering Machine or Razor Blade Wire Asemblying Machine



FEATURES

  • This machine is used for Assembling Razor Blade and Wire.

SPECIFICATION

Item Code No.

ABM-FM-6905

Wire Dia.

2.0 to 3.0  mm

Production

100 Kg.

FULL PLANT CONTAINS  FOLLOWING  MACHINES

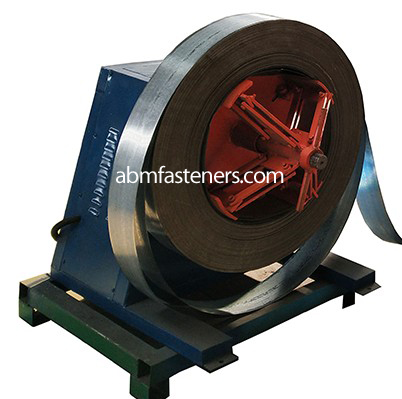

  STEEL  PLATE  DECOILER PUNCHING  PRESS

  Steel Plate Decoiler Razor Barbed Wire Punching Press

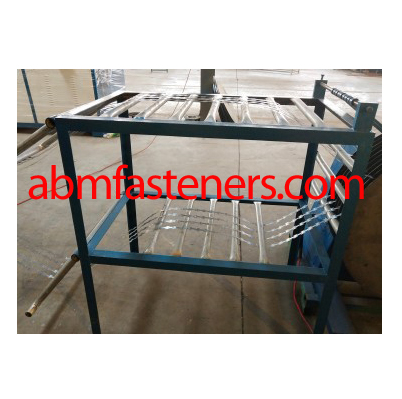

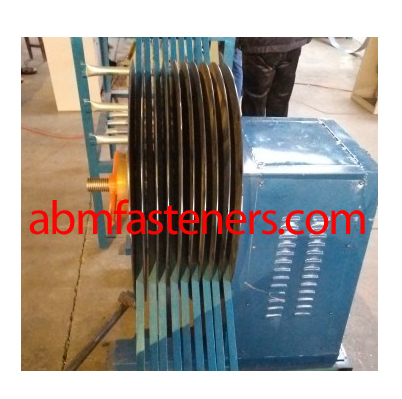

  RAZOR  COLLECTION  FRAMES RAZOR  RECOILER

Razor Barbed Wire Collection Frame Razor Barbed Wire Recoiler

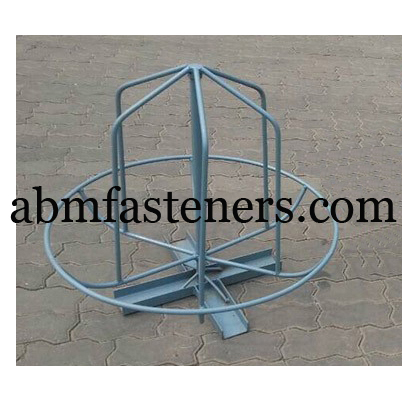

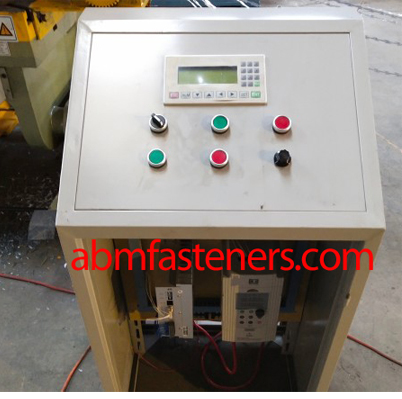

  CONTROL  PANEL PAY  OFF  STAND  WIRES

  Razor Barbed Wire Control panel Razor Barbed Wire Pay Off Stand Wire

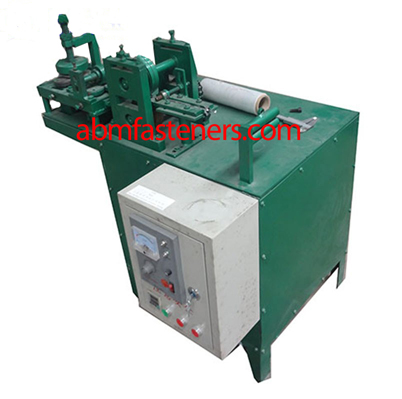

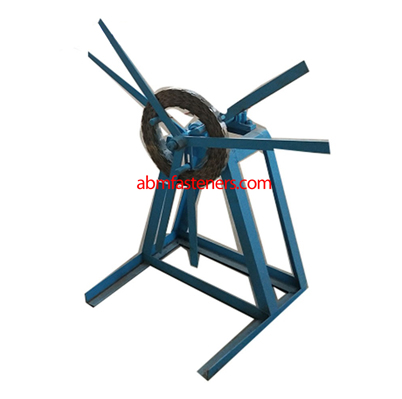

  RAZOR  BLADE  DECOILER WIRE COVERING MACHINE (Strip and Wire Assembling Machine

  Razor Blade Barbed Wire Decoiler Razor Blade Barbed Wire Wire Covering Machine or Strip and Wire Assemblying Machine

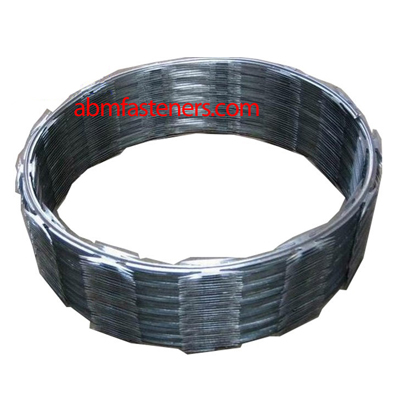

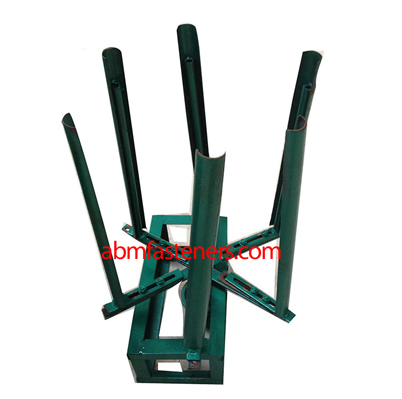

  RAZOR  WIRE  RECOILER FINISHED  PRODUCTS

  Razor Blade Barbed Wire Recoiler Razor Blade Barbed Wire Product

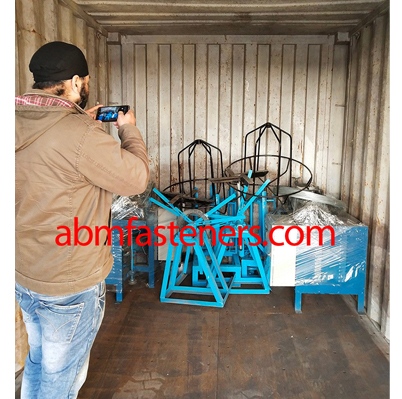

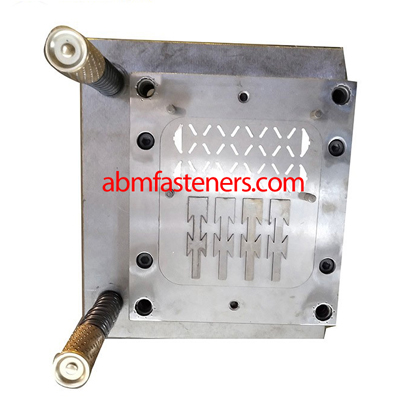

  MOLDS LOADING PICTURE 1

  Razor Blade Barbed Wire molds Razor Blade Barbed Wire Container Stuffing

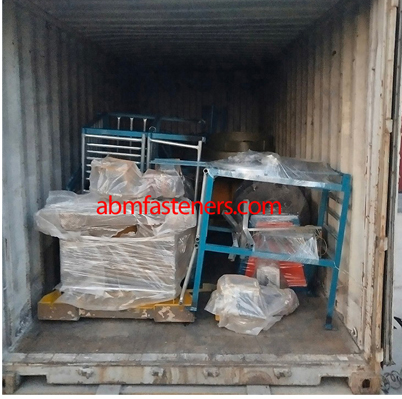

  LOADING PICTURE 2

  Razor Blade Barbed Wire Container Stuffing



VIDEOS

VIDEO  1  (Punching Press)




  VIDEO  2  (Punching Press)



  VIDEO  3  (Covering Machine - Wire and Strip Assemblying Machine)



  VIDEO  3  (Punching Press)










Barbed Wire Making Machines      Hexagonal Wire Netting Machine





All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.

Manufactured by ABM Fasteners (India) and Export Marketing by ABM Tools
