STAPLE PIN MAKING MACHINES (Automatic) (Single Wire / Multi Wire / Heavy Duty Industrial)

Download Catalogue (PDF)

(a) Single Wire - Staple Pin Making Machine (Automatic) (Staple Pin Making Plant)
(b) Multi Wire - Staple Pin Making Machine (Automatic)
(c) Heavy Duty Industrial - Staple Pin Making Machine (Automatic)

(a) SINGLE WIRE - STAPLE PIN MAKING MACHINE

FEATURES

Suitable for manufacturing staple pins using Single Wire.

SPECIFICATION

Item Code No.	ABM-FM-6690a
Wire Dia. S.W.G.	0.45 mm to 0.6 mm
Size of Pins	No 10 or 24/6
Maximum Clips Per Minute	350 to 400 Pcs.
Raw Material Required	Mild Steel Wire (S.S Coated/ Galvanized)
Wire Intake	1 Wire
Power Required	1 H.P.
Area Required	5' x 9'

One set of die is including with the machine either No 10 or 24/6 as desire by customer along with Wire stand & Auto Cutting Attachment ..

VIDEO

(b) MULTI WIRE - STAPLE PIN MAKING MACHINE

FEATURES

Suitable for manufacturing staple pins using 5 Wires.

SPECIFICATION

Item Code No.

ABM-FM-6690

Wire Dia. S.W.G.

0.45 mm to 0.6mm

Size of Pins

No 10 or 24/6

Maximum Clips Per Minute

1500-1600 Pcs.

Raw Material Require

MILD Steel Wire(S.S Coated / Galvanized )

Wire Intake

5 Wires

Power Required

2 H.P.

Area required

9’ x 18’

One set of die is including with the machine either No 10 or

24/6 as desire by customer along with

Wire stand & Auto Cutting Attachment ..

VIDEO

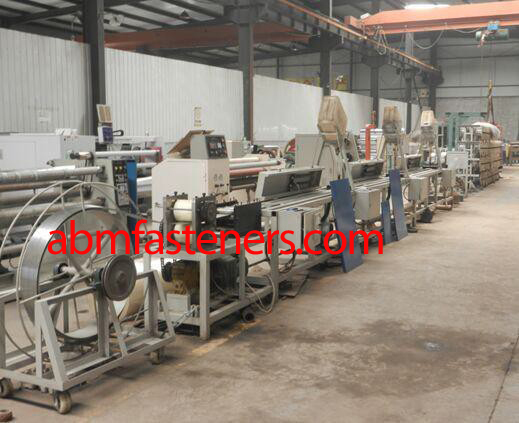

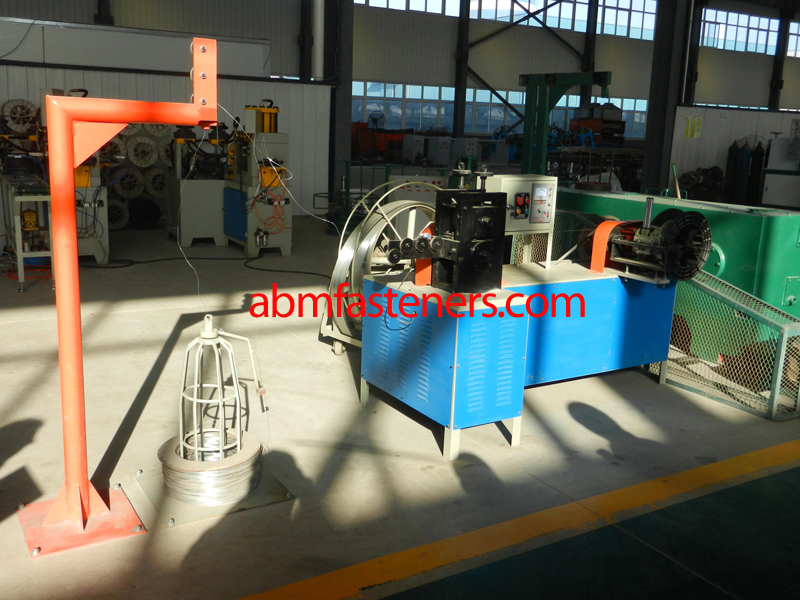

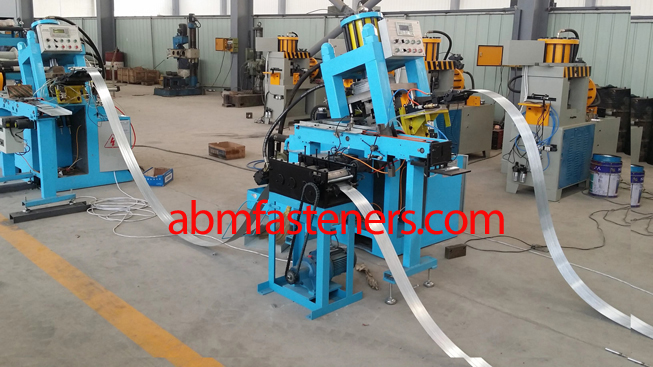

FEATURES

Suitable for manufacturing industrial staple pins

SPECIFICATION

Item Code No.

Product Name

Motor Power
KW

Speed
(m/min)

Weight Kg.

ABM-FM-6690B

Flat Stitching Wire Making Machine

2.2

0-350

900

ABM-FM-6690C

Glue Stick Wire Making Machine

12.7

2-18

1500

ABM-FM-6690D

Staple Forming Machine

7.5

100-140

1800

VIDEO

VIDEO (Flat Stitching Wire Making Machine - Staple Pin Making Machine)

VIDEO (Glue Stich Wire Macking Machine - Staple Pin Making Machine)

All Specifications are subject to change towards improvements without any prior notice.

Manufactured by ABM Fasteners (India) and Export Marketing by ABM Tools
