STRAITENING  CUM  CUTTING  MACHINES

Download Catalogue (PDF)

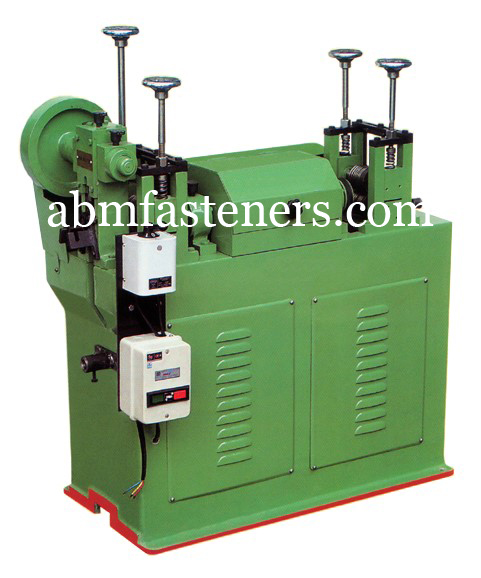

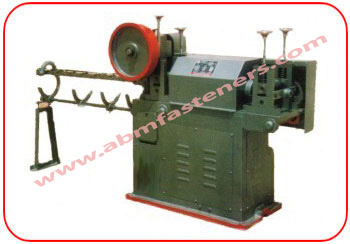

Straitening cum cutting machines       Wire Straightening cum Cutting Machine



FEATURES

  • Suitable for straitening and cutting of electric welding rods, cloth hander wire, electrical parts, etc.

  • Any Length of wire can be cut without automatic attachments.

  • Straitening function performed by five straitening blocks which are adjustable.

  • Automatic cutting gauge for required length can be provided.

SPECIFICATION
Item Code No. Wire  Thickness Length of Wire to be cut Automatically Length of Wire
to be Cut		 Production
Per Min		 Motor
Required.
ABM-FM-6660 1 to 4 mm 38 to 480 mm Any Length 50' 1.5 H.P.
ABM-FM-6661 3 to 8 mm 38 to 1000 mm Any Length 60' 3 H.P.
ABM-FM-6662 3 to 10 mm 38 to 1000 mm Any Length 60' 3 H.P.
ABM-FM-6663 6 to 13 mm 63 to 1000 mm Any Length 55' 5 H.P.
ABM-FM-6664 8 to 16 mm 75 to 1500 mm Any Length 50' 3 + 10 H.P.
ABM-FM-6665 15 to 20 mm 100 to 1500 mm Any Length 40' 3 + 15 H.P.
ABM-FM-6666 20 to 40 mm 175 to 3000 mm Any Length 20' 7.5 + 30 H.P.





Paper Pin Making Machines      Gem Clip Making Machines





All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
