GANTRY CRANE



Download Catalogue (PDF)

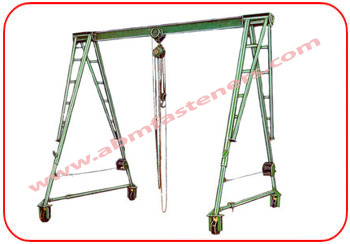

Gantry Crane

DESIGN

  • 'ABM' Self Raising Portable Heavy Duty Adjustable Gantry Crane.

  • Confirming to IS : 3177 - 1977.

APPLICATION

  • Used for maintenance, erection, loading and unloading of any heavy work load.

MAIN PARTS

       GIRDER / BEAM

  • Beam Heavy Duty confirming to IS 226 of 1975.



       PIPES

  • 4 Male and 4 Female Pipes (E.R.W.) confirming to IS : 1161 to 1963.



       WINCHES

  • Each Side of the crane is fitted with winch machine with wire rope for smooth and easy erection of crane..



       WHEELS

  • 4 Castor Wheels assemblies 360° Swiveling fitted with 2 ball bearing each wheel are provided for the smooth and light movement of the crane.

  • Each assembly is fitted with locking device.



       SELF ERECTION

  • Two laymen can erect the complete system with the help of winch machine provided with the crane.

TEST

  • The Gantry Crane is tested on 25% overload.

TECHNICAL DATA
Item Code No. ABM-MH-6240 ABM-MH-6241 ABM-MH-6242 ABM-MH-6243 ABM-MH-6244 ABM-MH-6245 ABM-MH-6246 ABM-MH-6247
Capacity in Tonnes 1 2 3 5 7.5 10 15 20
Test Load in Tonnes 1.25 2.5 3.75 6.25 9.4 12.5 18.7 25
Overall Max Ht in mm 5000 5000 5000 6000 6000 6000 6000 6000
Overall Min Ht in mm 3000 3000 4000 4000 5000 5000 5000 5000
Clear Span in mm 3500 3500 3500 3500 3500 3500 3500 3500
Wheel Dia. 200 200 200 280 280 280 280 300
Head Room with Hand Lifting Span in mm 4230 4080 4930 4700 5550 5400 5160 5010





Winch Machine with Electric Wire Rope      Jib Crane





All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.

 Manufactured by ABM Fasteners (India) and Export Marketing by ABM Tools
