MANUAL CHAIN BLOCK



Download Catalogue (PDF)

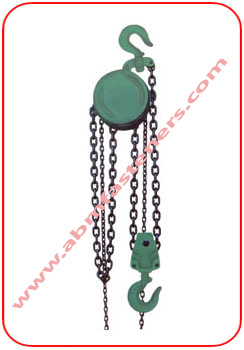

Chain Block Manual

HOOK

  • Heavy Duty Steel Forged capable to withstand shock loads.

  • Free to rotate & Swivel, as per IS : 8610.

BODY

  • Made of Steel Plates as per IS : 226

LOAD WHEEL

  • Made of Heavy Duty Steel casting mounted on double Ball Bearing for smooth operation.

MAIN ARM

  • Solid Steel Forged Arm capable of bearing Jerks & Heavy Loads.

LOAD CHAIN

  • For 'ISI' marked Chain Pulley Blocks Grade 80 alloy steel chain as per IS : 6216 - 1970 is used.

  • We also use Grade 30 load chain only for Non ISI.

BRAKE

  • Self actuating Screw Disc Type ensures full safety.

  • Steel forged Pawl, Ratchet hardened &Tempered.

  • The Pawl tip is not less than 40 HRC &Ratchet 30 HRC.

APPLICATION

  • For Lifting and lowering Heavy Loads without Fatigue.

SPECIFICATION
Capacity in Tonnes 1 2 3 5 7.5 10 15 20
Nett Weight in
3 Mtr. Lift in Kg. 		26 35 41 70 98 126 176 266
Extra Weight / Mtr Lift in Kg. 2.9 4.3 4.3 5.7 10.8 13.9 20.1 27.8
No. of Falls 1 2 2 3 3 4 6 8
Velocity Ratio App. 50.5 102 102 280 216 298 430 592
Hand Power in Kg. 35 35 45 40 40 52 80 85
Head Room in mm 54.5 680 715 810 985 925 1100 1200
Width in mm 230 230 230 475 475 525 600 1220
Item Code No. ABM-MH-6300 ABM-MH-6301 ABM-MH-6302 ABM-MH-6303 ABM-MH-6304 ABM-MH-6305 ABM-MH-6306 ABM-MH-6307





Chain Electric Hoist      Wire Rope Electric Hoist





All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
