SOLID  RIVET  MAKING  MACHINES  (High Speed)











(a) Automatic High Speed Double Stroke Cold Heading Machines
(b) Automatic High Speed Double Stroke Cold Heading Machines (Baby Model)

















DOUBLE  STROKE  COLD HEADING  MACHINES  (Automatic,  High Speed)











double stroke header, high speed, automatic











FEATURES





  • These cold heading machines are fully automatic and easy to operate with little training, fitted with Solid Die to produce blank for Bolts, Screws, Rivets and other similar components. Cut off and knock out mechanism have safely devices that will stop any major accident if any abnormal function occurs in machines.

  • A positive knock out provision had been made on the 1st and 2nd punches to eliminate the possibility of parts sticking to these punches during the operations. The maximum parts of the machines are ground and all the Cames and Rollers  from H.C.H.C. ( Hardened & Ground ).

  • On  some  extra  charges machines will be equipped with Pneumatic Clutch & Automatic Centralized Lubrications systems which provides sufficient quantity lubricating to all bearing surface.




  SPECIFICATION



Item Code No. Length of Rivet Dia. of Rivet Production
Per Minute
Motor H.P.
& R.P.M.
ABM-FM-6410 2"  (12 mm - 50 mm) 1/4" (3 mm - 6 mm) 90 - 95  Pcs. 5 x 960
ABM-FM-6411 2-1/2" (20 mm - 65 mm) 5/16" (6 mm - 8 mm) 80 - 85  Pcs. 7.5 x 960
ABM-FM-6412 3"  (20 mm - 75 mm) 3/8" (6 mm - 10 mm) 70 - 75  Pcs. 10 x 960

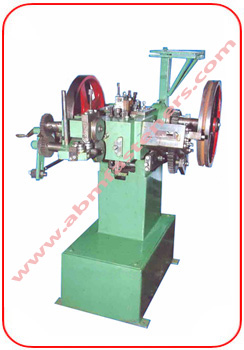

DOUBLE  STROKE  COLD HEADING  MACHINES  (Baby Model)
(Automatic,  High Speed)











double stroke header, high speed, Baby Model











FEATURES





  • These cold heading machines are fully automatic and easy to operate with little training, fitted with Solid Die to produce blank for Bolts, Screws, Rivets and other similar components. Cut off and knock out mechanism have safely devices that will stop any major accident if any abnormal function occurs in machines.

  • A positive knock out provision had been made on the 1st and 2nd punches to eliminate the possibility of parts sticking to these punches during the operations. The maximum parts of the machines are ground and all the Cames and Rollers  from H.C.H.C. ( Hardened & Ground ).

  • On  some  extra  charges machines will be equipped with Pneumatic Clutch & Automatic Centralized Lubrications systems which provides sufficient quantity lubricating to all bearing surface.




  SPECIFICATION



Item Code No. Length of Rivet Dia. of Rivet Production
Per Minute
Motor H.P.
ABM-FM-6480 3/4"  (2 mm - 20 mm) 1/8" (1 mm - 3 mm) 125 - 150  Pcs. 1 x 1400











Coach Screw Making Plant      Blind Rivet Making Machines







All  Specifications  are  subject  to  change  towards  improvements  without  any  prior  notice.
